Teckentrup Side Hinge Garage Doors tamworth
Superier quality

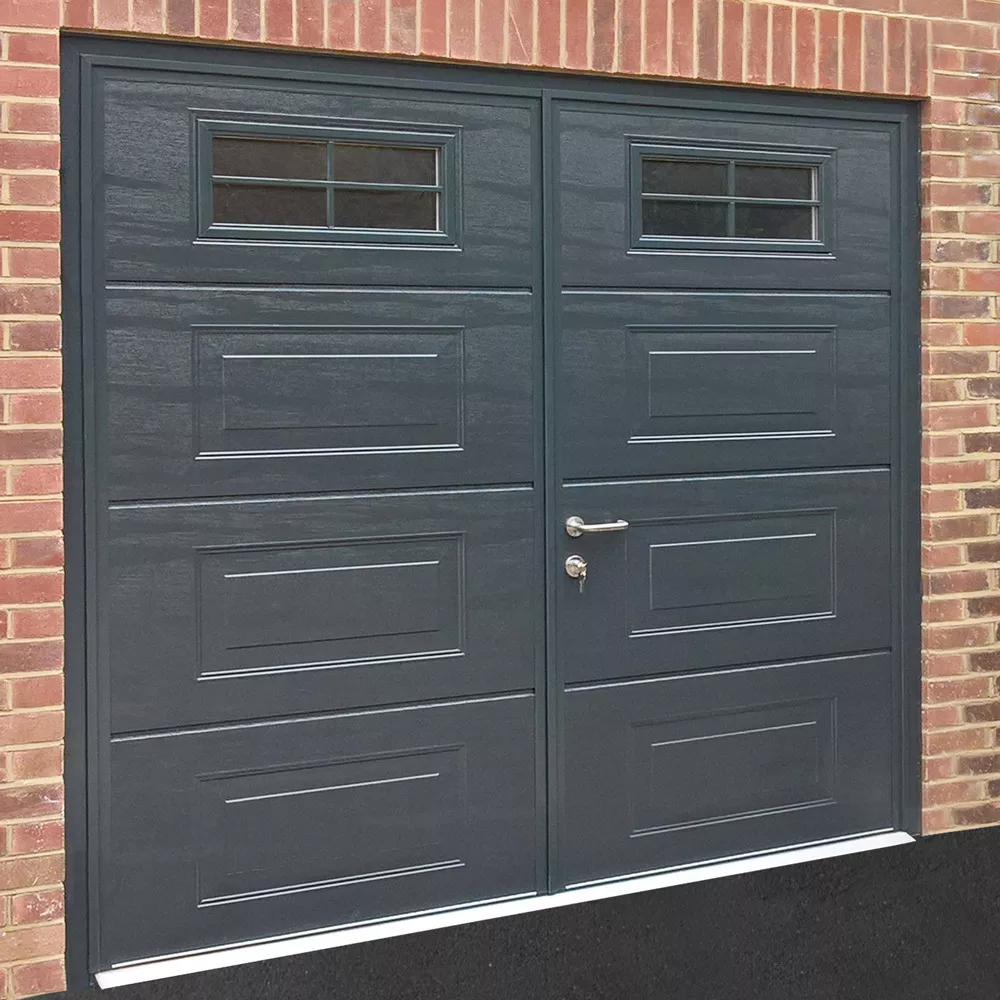

Teckentrup Side Hinge Garage Doors
Excellent Security
Teckentrup insulated side hinged garage doors and personnel doors are quite simply the very best. The solid panels, engineered hollow section aluminium frames and high grade fittings result in a door that closes with a reassuringly deep “clunk”.
Security is excellent and the range of styles, finishes and windows allows personalisation to suit your tastes. 1/2 and 1/2 opening and asymmetric configurations further increase versatility.
Styles & Finishes
Making the garage part of your home
Plain Stucco Micro-profile Woodgrain
A
High quality concealed hinges
All side hinged doors have concealed hinges for a super sleek overall look. No hinges to the outside of the door removes an obvious point of attack and also makes it difficult to lever open the door should an attempt be made.
Concealed hinges offer an improved drive through width of up to 80mm between the frame compared to surface mounted hinges.
Each door leaf has two or three (dependent on size) heavy-duty concealed hinges that are easily adjusted to help align the door leaves perfectly.
B
Stainless steel handles* and security locking
High grade stainless steel handles and lock covers are tough and attractive, whilst the latch and dead bolt combination provides dependable security. A convenient thumb turn operates the lock from the inside. Certified to BS EN1303 Cylinder Security Grade 2, our lock cylinder provides enhanced security and is anti-drill and anti-pick. 3 keys as standard.
The inactive leaf incorporates a stainless steel strike plate with an adjustable latch plate for precise latching and a steel lock keep box for added attack resistance. Specific hardware requirement? Talk to us as alternative designs can often be accommodated.
C
Door stays
These top grade, spring dampened stays hold the door securely in the open position. A simple de-latch motion releases the held door leaf. Any leaf below 780mm wide (including asymmetric side hinged doors) will not have a stay. Foot operated floor stays can be selected as an alternative option. Note - not designed for high wind applications.
Add foot activated floor stops to hold the door in the open position. Floor stops can be selected as an alternative option to door stays.
Note - not designed for high wind applications.
D
Double weather strips and mitred corners
In addition to the circumferential weather strip around the door leaf, the door frame has a three-sided weather strip for excellent draught reduction. Profiles are mitre jointed for a neat finish.
E
Standard lipped threshold
A stepped 3-part aluminium threshold with a bulb weather strip is supplied as standard. The door leaves close against the raised weather strip creating an improved barrier to dust and debris. The threshold includes a thermal break reducing heat transfer.
F
Flush bolt security
The inactive leaf is secured with flush bolts to the top and bottom of the leaf. Each bolt has an adjustable flush bolt plate for greater versatility on the position of the leading edge on the inactive leaf as seals compress over time.
G
Neat inside too
The inside of the door is very presentable. There are no unsightly bracings just a wipe clean surface finished in a practical grey white stucco texture (RAL 9002).
Horizontal doors are as shown left. Vertical doors have small jointing plates at the panel interfaces, shown on a single leaf right.
H
Aluminium strip threshold & triple point locking options
The aluminium profile available as an option, provides a simple low profile threshold (without a weather strip).
The active leaf is available with three point locking for greatly enhanced security. The locks provide enhanced strength to combat attempts to force them apart.
I
Open-In & Open-Out Options
All side hinged garage doors are typically open-out. Open-in is available as an option.
Note - open-in increases the likelihood of water ingress. We recommend the drip guard option is selected with open-in doors.
Scratch-Resistant Polymer Windows
Make the most of the light, with our comprehensive range of window options
Scratch-resistant Polymer double glazed windows in attractive designs allow natural light into your garage.
Each style is available with clear, frosted or satin glazing. The window units are fitted with a polyurethane frame that is coloured to match or compliment the panel colour of the door.
Insulation ‘U Value”
What’s in a number? Our 40mm thick panels have an insulating value that has been independently tested to 0.56 W/m²K. The lower the value the better the insulating properties.
It’s not a figure we tend to quote because we know a door is more than just a panel. We quote the insulation value for a complete door (over frame size 10’4” wide x 7’6” high) including the panel joints and weather strips. CarTeck side hinged doors have an insulation ‘U value’ of 2.20 W/m²K - you won’t find better performance on any comparable garage door.
